Paragon DEF Transfer Pump

Since 2015 Tier 4 diesel engines for heavy equipment and locomotives have been built to the most stringent emissions standards ever. The introduction of Diesel Exhaust Fluid (DEF) has been a major factor in achieving these nationally mandated requirements for several engine manufacturers.

But delivering and dosing DEF — reliably, consistently and accurately — within the demands of today's harsh industrial operating environments represents a formidable challenge for manufacturers and rebuilders alike.

That's why many rely on Paragon's advanced-technology DEF transfer pump. Its robust construction is specifically designed to deliver exceptional trouble-free performance hour after hour, mile after mile.

Features & Benefits

Integral fluid-cooled, microprocessor-controlled inverter
Exceptionally reliable AC induction motor and external gear set for long life and excellent priming capabilities
Oversized motor easily breaks through crystalized urea
Integrated preor designed specifically for DEF applications
Over-current protection
Hight/low voltage protection
Locked-rotor protection
Locked-rotor break-free protection
CAN interface with constant pump status broadcast per ANSI J1939

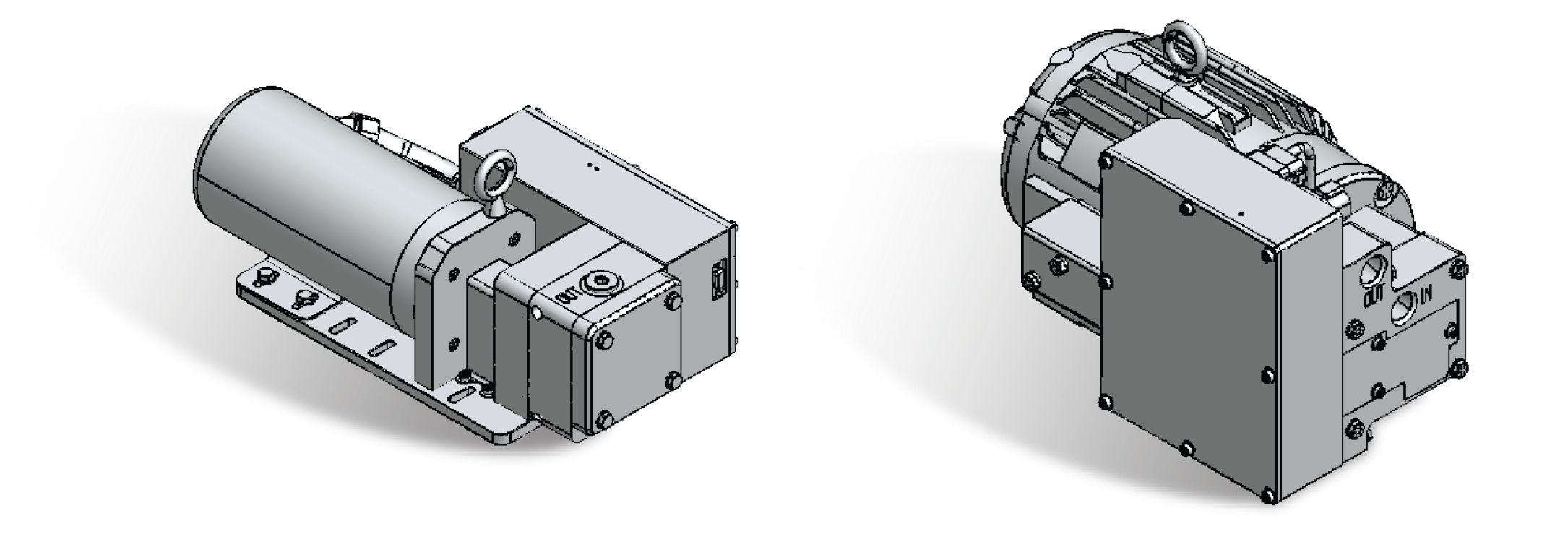

DEF Transfer Pump Models
DEF Transfer Pump Models
Class Item No. Description Input Voltage Flow Pressure Max. Current H×W×D
1 64928-9 GEN2 DEF Transfer Pump – 24 vdc 24 vdc 1.2 gpm / 0–4.5 lpm 0–60 psi / 0–4 bar 15 amps 8.1×8.6×16.1 in / 206×218×409 mm
1 64928-19 GEN2 DEF Transfer Pump – 24 vdc Marine 24 vdc 1.2 gpm / 0–4.5 lpm 0–60 psi / 0–4 bar 15 amps 8.1×8.6×16.1 in / 206×218×409 mm
2 65820-9 GEN3 DEF Transfer Pump – 74 vdc 74 vdc 0–4 gpm / 0–15 lpm 0–100 psi / 0–7 bar 20 amps 9×10.4×14.7 in / 229×264×373 mm

Information Request

Please contact us for further information about the Paragon product range or unique configurations for your specific applications.
