Smart Fuel Transfer Pumps

Paragon's Smart Fuel Transfer Pumps are continuous duty, with closed-loop pressure control with a target pressure between 0.5 bar and 10 bar (5 psi and 150 psi). The pump monitors and reports the presence of air, sensor failure, locked rotor, filter clogging, thermal problems, limp home mode, and dry run conditions. Stored data can be communicated to a handheld device for further troubleshooting and diagnostics. Energy savings are achieved by reducing parasitic loads, with extended filter life. Designed for over 10 years.

Model Range

Choose your flow rate

VS / CS 7425

Low-Flow Model

0 to 30 lpm / 0 to 8 gpm

Continuous duty operation
Target pressure: 0.5–10 bar (5–150 psi)
Variable speed via CAN and/or closed-loop pressure control
24 VDC to 110 VDC input; 3-phase AC controller

VS / CS 7435

High-Flow Model

30 to 60 lpm / 8 to 16 gpm

Continuous duty operation
Target pressure: 0.5–10 bar (5–150 psi)
Variable speed via CAN and/or closed-loop pressure control
24 VDC to 110 VDC input; 3-phase AC controller

Product Highlights

Features & Diagnostics

Continuous duty

Closed-loop pressure control: 0.5–10 bar (5–150 psi)

Monitors and reports air presence in the fuel system

Sensor failure detection and fault reporting

Locked rotor and dry run protection

Filter clog detection

Thermal overload monitoring and limp-home mode

Visual LED indicator for pump and system status

Stored diagnostic data downloadable to handheld device

Energy savings through reduced parasitic load

Extended filter life

Self-priming; handles large debris via 30-mesh strainer (600 microns)

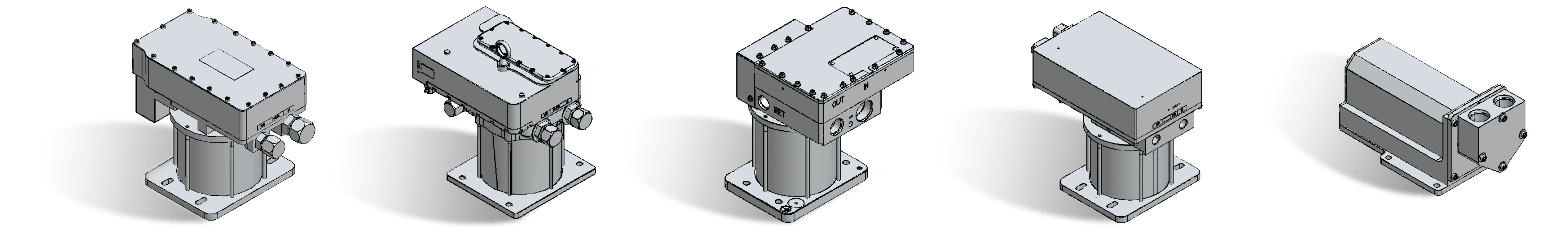

Smart Fuel Pump Models

Class	Item No.	Description	Input Voltage	Flow	Pressure	Max. Current	H × W × D (Looking at Ports)
1	66256-9	7 gpm 100 psi VS Fuel Pump – 74 vdc	74 vdc	7–8 gpm / 27–30 lpm	0–150 psi / 0–10 bar	25 amps	10 × 8.5 × 12.6 in / 254 × 216 × 320 mm
1	66705-9	12 gpm 120 psi VS Fuel Pump – 74 vdc	74 vdc	7–8 gpm / 27–30 lpm	0–120 psi / 0–8 bar	25 amps	10 × 8.5 × 12.6 in / 254 × 216 × 320 mm
2	65609-9	7 gpm 180 psi VS Fuel Pump – 74 vdc	74 vdc	7–8 gpm / 27–30 lpm	0–180 psi / 0–12 bar	35 amps	14.4 × 9.5 × 13.6 in / 366 × 241 × 345 mm
2	66866-9	15 gpm 120 psi VS Fuel Pump – 74 vdc	74 vdc	15 gpm / 57 lpm	0–120 psi / 0–8 bar	35 amps	14.4 × 9.5 × 13.6 in / 366 × 241 × 345 mm
2	65610-9	12 gpm 180 psi VS Fuel Pump – 74 vdc	74 vdc	12 gpm / 45 lpm	0–180 psi / 0–12 bar	35 amps	14.4 × 9.5 × 13.6 in / 366 × 241 × 345 mm
2	65611-9	15 gpm 150 psi VS Fuel Pump – 74 vdc	74 vdc	15 gpm / 57 lpm	0–150 psi / 0–10 bar	35 amps	14.4 × 9.5 × 13.6 in / 366 × 241 × 345 mm
2	65537-9	12 gpm 180 psi VS Fuel Pump – 110 vdc	110 vdc	12 gpm / 45 lpm	0–180 psi / 0–12 bar	25 amps	14.4 × 9.5 × 13.6 in / 366 × 241 × 345 mm
3	64502-19	9 gpm 180 psi VS Fuel Pump – 24 vdc	24 vdc	0–9 gpm / 0–34 lpm	0–180 psi / 0–12 bar	55 amps	12 × 8 × 11.1 in / 305 × 203 × 282 mm
3	64244-40	9 gpm 180 psi VS Fuel Pump – 24 vdc	24 vdc	0–9 gpm / 0–34 lpm	0–180 psi / 0–12 bar	25 amps	12 × 7 × 11 in / 305 × 178 × 279 mm
4	66125-9	8 gpm 30 psi CS Fuel Pump – 74 vdc	74 vdc	8 gpm / 30 lpm	0–30 psi / 0–2 bar	15 amps	10.4 × 8.5 × 12.1 in / 264 × 216 × 307 mm
5	64124-20	4 gpm 50 psi CS Fuel Pump – 24 vdc	24 vdc	0–4 gpm / 0–15 lpm	0–50 psi / 0–3 bar	15 amps	5 × 5.6 × 11.1 in / 152 × 142 × 282 mm
