Turbo Soak-Back Pumps

Designed for a maintenance-free life of 10 years on heavy-duty equipment — protecting turbochargers on shutdown and providing vital pre-lube on startup.

Smart Control

Smart Control Turbo Soak-Back

Paragon Smart Control Turbo Soak-Back Pump

Continuous duty, with a range of flow rates available:

VS/CS7425 — 0 to 30-lpm (0 to 8-gpm)

  • Pressure control with target pressure between 0.5-bar and 10-bar (5-psi and 150-psi)
  • Monitors and reports the presence of air, sensor failure, locked rotor, filter clogging, thermal problems, limp home mode, and dry run conditions
  • Visual status (LED) indicator for pump and system status
  • Can communicate stored data to handheld device for further troubleshooting and diagnostics
  • Energy savings by reducing parasitic loads
  • Extended filter life

Intelligent controllers:

  • 3 phase AC Controller — 24-vdc to 110-vdc input; capable of variable speed, controlled via CAN, and/or closed loop pressure control
  • Media-cooled controller
  • Hardened gears
  • Media-cooled AC brushless motor
  • Continuously lubricated bearings; fresh fuel purges debris from bearings
  • Self priming and designed to be used with large debris — 30 mesh strainer (600 microns)
  • Exceptional durability; designed for over 10 years

Turbo soak-back pumps are used for turbocharger lubrication and cooling immediately upon engine shutdown, avoiding expensive and unnecessary turbocharger failures. It functions as a turbo pre-lube pump as well providing vital protection during startup.

Paragon Turbo Soak-Back Pump
Product Details

Features & Benefits

Designed for frequent start/stop cycles (AESS)
Brushless induction motors eliminate the cost and downtime of regular brush replacement
DC power input
Liquid-cooled electronics to prevent heat-related failures
Continuously lubricated, self-cleaning bearings for better and more consistent performance over the life of the product
Hardened pump body and gears maximize longevity
Capacity 13 LPM (3.5 GPM), differential pressure of 2.8 bar (40 PSI)
Other sizes and voltages on request
Can double as an engine pre-lube pump or turbo pre-lube pump
Paragon Products soak-back pumps are designed for a maintenance-free life of 10 years on heavy-duty equipment.
Diverse range of flow rate designs
8-lpm (2-gpm)
15-lpm (4-gpm)
Outlet pressure up to 2.7-bar (40-psi)
24-vdc to 110-vdc input

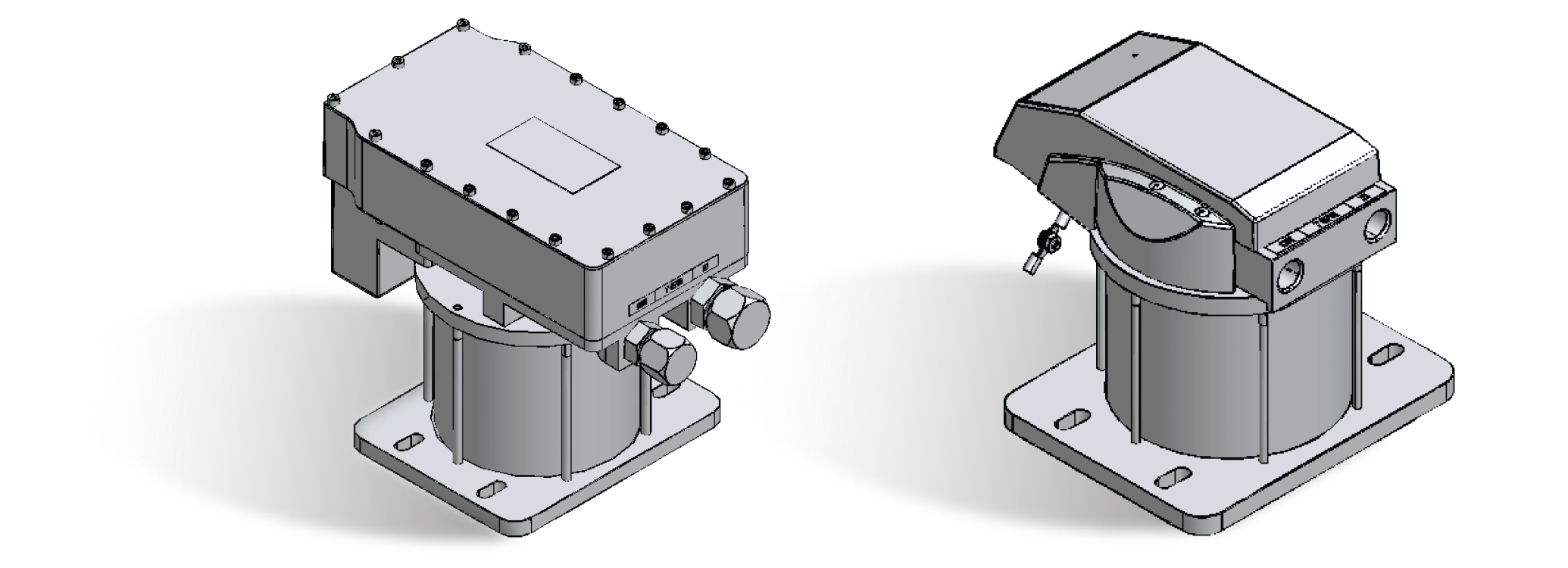

Turbo Soak-Back Pump Models
Oil Pump Models
Class Item No. Description Input Voltage Flow Pressure Max. Current H×W×D
— 63068-9 Soak-back Oil Pump, 3.5-gpm at 40-psi, 74 VDC Input (AESS) 74 vdc 3.5 gpm / 13 lpm 40 psi / 2.8 bar — —
1 66752-9 4 gpm 90 psi VS Oil Pump – 64 vdc 64 vdc 4 gpm / 15 lpm 0–90 psi / 0–6 bar 8 amps 8.4×8.5×8.9 in / 213×216×226 mm
2 63068-19 4 gpm 90 psi Oil Pump – 64 vdc 64 vdc 4 gpm / 15 lpm 0–90 psi / 0–6 bar 8 amps 8.4×8.5×8.9 in / 213×216×226 mm
2 63068-49 4 gpm 90 psi Oil Pump – 110 vdc 110 vdc 4 gpm / 15 lpm 0–90 psi / 0–6 bar 8 amps 8.4×8.5×8.9 in / 213×216×226 mm
